Getting Started

Install Claude HUD and get it running in under a minute. This guide walks you through prerequisites, installation, first-run configuration, and verifying that everything works.

Prerequisites:

Parent topic: Overview

Quick Install

Claude HUD installs entirely from within Claude Code. Open a terminal with Claude Code running, then follow these three steps.

Step 1: Add the Marketplace

Register the Claude HUD marketplace source so Claude Code knows where to find the plugin:

/plugin marketplace add jarrodwatts/claude-hud

This is a one-time operation. Once added, the marketplace persists across sessions.

Step 2: Install the Plugin

/plugin install claude-hud

Claude Code downloads the latest release, compiles it, and registers it as a statusline plugin.

Linux users: If you see EXDEV: cross-device link not permitted, your /tmp is on a separate filesystem (common with tmpfs). Fix it by launching Claude Code with a local temp directory:

mkdir -p ~/.cache/tmp && TMPDIR=~/.cache/tmp claude

Then run /plugin install claude-hud inside that session. This is a Claude Code platform limitation, not specific to Claude HUD.

Step 3: Configure the Statusline

/claude-hud:setup

This command registers the HUD as your active statusline in ~/.claude/settings.json. The HUD appears immediately — no restart needed.

What You Should See

After setup, a statusline appears below your Claude Code input. The default view shows two lines:

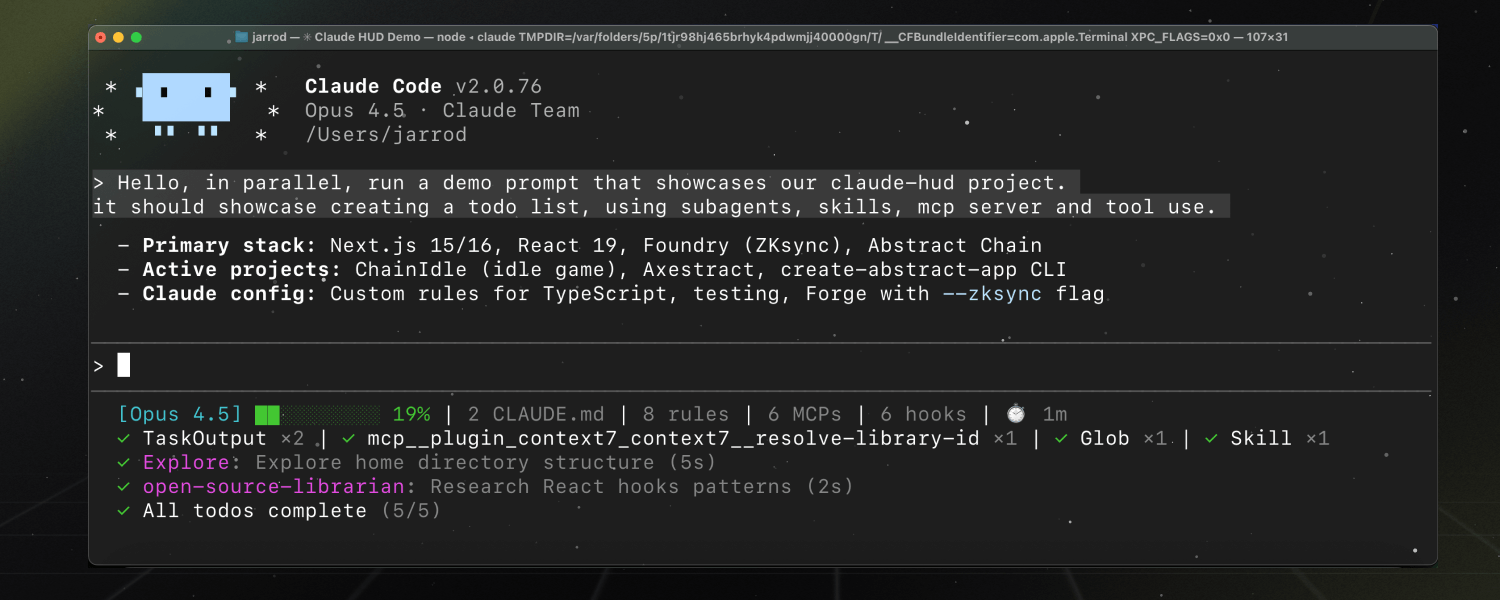

Claude HUD preview showing context bar, model info, and project path

[Opus | Max] | my-project git:(main*)
Context █████░░░░░ 45% | Usage ██░░░░░░░░ 25% (1h 30m / 5h)

The context bar changes color as your session fills up:

Context Usage Color Meaning
0–70% Green Healthy — plenty of room
70–85% Yellow Warning — consider wrapping up soon
85%+ Red Critical — token breakdown displayed

If your HUD does not appear, jump to the Troubleshooting guide.

Choose a Preset

Run the interactive configurator to pick a display preset:

/claude-hud:configure

Three presets control how much information the HUD shows:

Preset Lines What’s Shown
Full Up to 5 Everything — tools, agents, todos, git, usage, duration
Essential 3 Activity lines + git status, minimal clutter
Minimal 2 Core only — model name and context bar

After choosing a preset, the configurator lets you toggle individual elements on or off. Your choices are saved to ~/.claude/plugins/claude-hud/config.json.

Preset Examples

Full preset — all lines enabled:

[Opus | Max] | my-project git:(main*)
Context █████░░░░░ 45% | Usage ██░░░░░░░░ 25% (1h 30m / 5h)
◐ Edit: auth.ts | ✓ Read ×3 | ✓ Grep ×2
◐ explore [haiku]: Finding auth code (2m 15s)
▸ Fix authentication bug (2/5)

Minimal preset — just the essentials:

[Opus] | my-project git:(main)
Context █████░░░░░ 45%

Enable Optional Lines

By default, only the session info and context bar are visible. Three additional lines can be enabled:

Tools Activity

Shows which tools Claude is using right now and a summary of recent tool calls:

◐ Edit: auth.ts | ✓ Read ×3 | ✓ Grep ×2

Enable with:

{ "display": { "showTools": true } }

Agent Tracking

Shows running subagents with their model, task description, and elapsed time:

◐ explore [haiku]: Finding auth code (2m 15s)

Enable with:

{ "display": { "showAgents": true } }

Todo Progress

Tracks task completion from TodoWrite calls in real time:

▸ Fix authentication bug (2/5)

Enable with:

{ "display": { "showTodos": true } }

These lines only appear when there is activity to display. When idle, they hide automatically to keep the HUD clean.

Edit the Config File Directly

For settings not covered by the interactive configurator — such as custom colors, path depth, or cache timing — edit the config file directly:

# Open the config file in your editor
$EDITOR ~/.claude/plugins/claude-hud/config.json

A minimal example that enables all activity lines with custom colors:

{
  "lineLayout": "expanded",
  "pathLevels": 2,
  "display": {
    "showTools": true,
    "showAgents": true,
    "showTodos": true,
    "showDuration": true
  },
  "colors": {
    "context": "cyan",
    "usage": "brightBlue",
    "warning": "yellow",
    "critical": "red"
  }
}

Running /claude-hud:configure later preserves any manual settings you have added.

For the full list of configuration options, see the Configuration reference.

Verify the Installation

After setup, confirm everything works:

1. Check the plugin is registered:

/plugin list

You should see claude-hud in the output.

2. Check the statusline config:

The /claude-hud:setup command adds a statusLine entry to ~/.claude/settings.json. You can verify it exists:

cat ~/.claude/settings.json | grep statusLine

3. Test with sample data (advanced):

If you want to test the plugin outside of Claude Code, pipe JSON to the built binary:

echo '{"model":{"display_name":"Opus"},"context_window":{"current_usage":{"input_tokens":45000},"context_window_size":200000}}' | node ~/.claude/plugins/claude-hud/dist/index.js

You should see a rendered statusline in your terminal.

Usage Limits Display

If you have a Claude Pro, Max, or Team subscription, the HUD shows your rate limit consumption alongside context usage. This is enabled by default.

Context █████░░░░░ 45% | Usage ██░░░░░░░░ 25% (1h 30m / 5h)

When your 7-day usage exceeds the configured threshold (default 80%), that also appears:

Context █████░░░░░ 45% | Usage ██░░░░░░░░ 25% (1h 30m / 5h) | ██████████ 85% (2d / 7d)

Requirements for usage display:

Not seeing usage data? Check these common causes:

Updating Claude HUD

To update to the latest version, run:

/plugin install claude-hud

The /claude-hud:setup command configures an auto-updating path, so you do not need to re-run setup after updating. The next time Claude Code starts, it picks up the new version automatically.

Uninstalling

To remove Claude HUD:

1. Remove the plugin:

/plugin uninstall claude-hud

2. Remove the statusline config (optional):

Edit ~/.claude/settings.json and delete the statusLine entry, or set it to null.

3. Remove the config file (optional):

rm ~/.claude/plugins/claude-hud/config.json
